CROSSOVER DOME f

■Specs

Weight	Approx. 540 g / 19.05 oz
Material	Main Body: 10D High-Tenacity Mini Ripstop Nylon, Waterproof Breathable PU Coating Pole sleeves: 10D High-Tenacity Mini Ripstop Nylon, Acrylic coating
Breathability	367 g/m²/h
Poles	Yunan aluminum alloy hollow poles (7.5 mm diameter) with built-in shock cord
Waterproof rating	1,230 mm

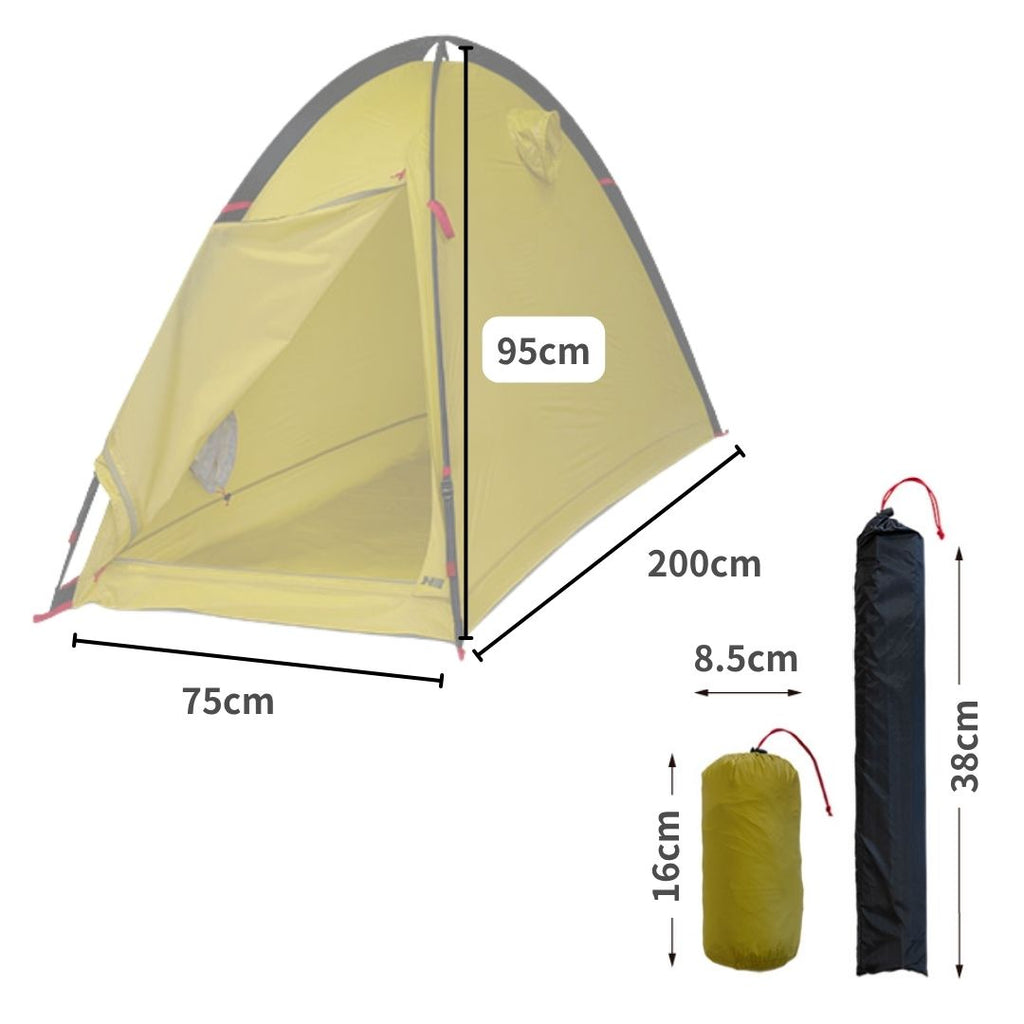

Size	W200 × D75 × H95 cm / W78.7 × D29.5 × H37.4 in
Capacity	1-Person
Included Items	Main body / Poles / Stuff sack
Country of Origin	Japan

■Size Guide

■ Features

• Choosing Based on Your Mountain Competence: The CROSSOVER DOME becomes an excellent option when objectively balancing the need for a secure, comfortable tent against a lighter but higher-risk shelter, depending on your own mountaineering skills and experience.

• Superior Comfort and Setup Speed Over Traditional Shelters: Featuring lightweight waterproof-breathable fabric and full seam sealing, it allows you to quickly set up a much more comfortable living space than traditional emergency shelters (tselt), without compromising on lightness or compactness.

• Lighter Fabric with Upgraded Strength: Made with premium Japanese 10D high-tenacity, ultra-thin nylon mini-ripstop, it achieves a lighter weight than previous models while successfully increasing tear strength.

• Dramatically Improved Waterproof & Breathable Performance: Thanks to a domestically processed, specialized PU coating, comfort has reached new heights. Water resistance is 1.5 times higher at 1,230 mm (JIS L 1092 A method), and breathability is 1.9 times greater at 367 g/m²/h (JIS L 1099 A-1 method) compared to the older model.

• Meticulous, Millimeter-Scale Weight Savings: The seam tape has been narrowed from 20 mm to 15 mm. Though requiring highly advanced and precise sealing techniques, this design choice pursues maximum weight reduction down to the very millimeter.

• High-Tenacity, Ultra-Thin Fabric Made in Japan: The panels and sleeves utilize a 10D, exceptionally thin yet durable Japanese-made material.

• Significantly Upgraded Waterproof & Breathable Performance: Thanks to a domestically processed, specialized waterproof-breathable PU coating, water resistance has increased by approximately 1.5 times and breathability by about 1.9 times compared to previous models.

• Further Reduced Condensation: By giving the panel fabric itself inherent air permeability, condensation inside the shelter is effectively minimized.

• Perfect Balance of Lightweight and Strength: Utilizing specialized high-strength yarns enhances tear strength while achieving an even lighter overall weight.

• Rapid Setup & Comfortable Bivouac Space: Utilizing a two-pole structure just like a standard dome tent, it allows for a much faster setup than traditional shelters (tselt) while securing a far more comfortable bivouac space.

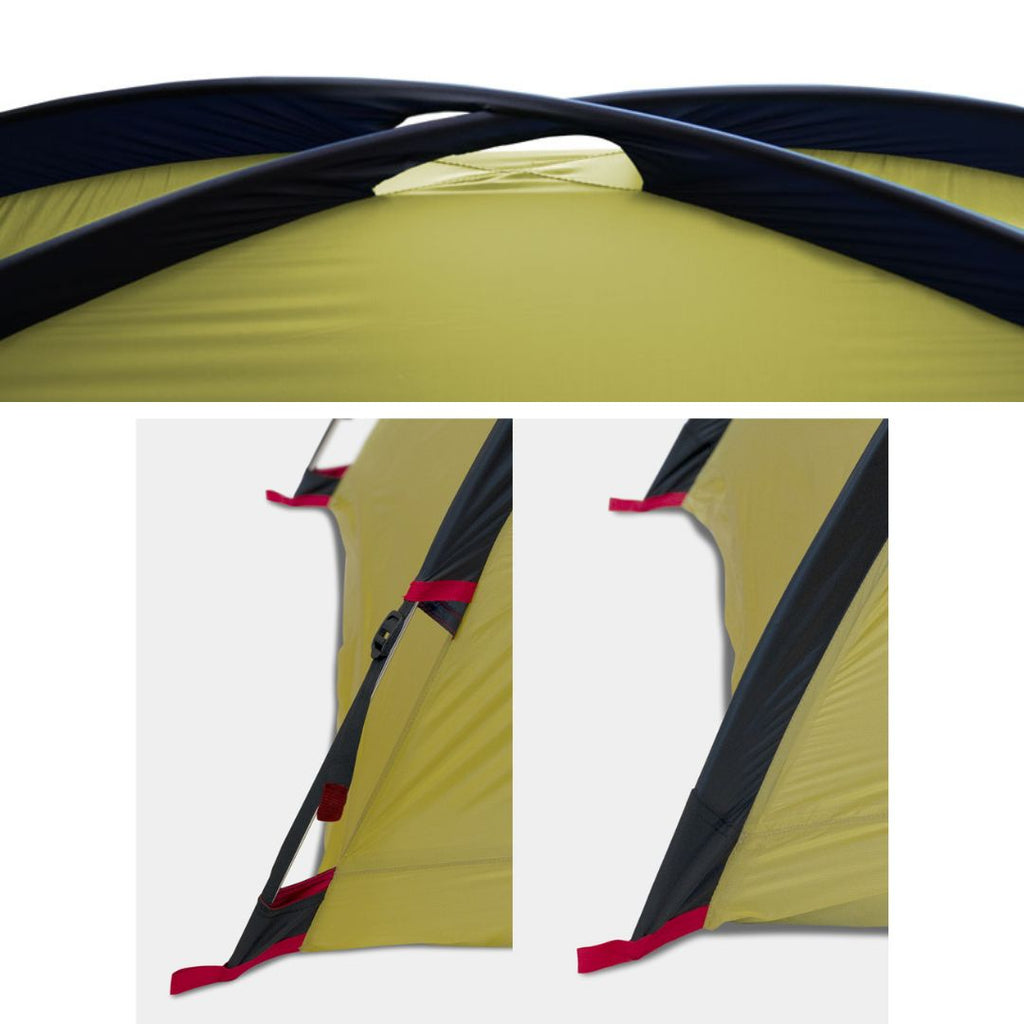

• Smooth Pole Threading (Connected Sleeves): The sleeve peaks are connected internally, preventing the poles from getting caught midway and ensuring a seamless, snag-free insertion.

• Single-Direction Insertion & Easy Tensioning: Since one end of each sleeve is closed into a pocket, poles can be fully set up from just one side without walking around, and the overall tension can be easily fine-tuned right from the insertion side.

• Right-Hand Friendly V-Shaped Design: The sleeve entry and the locking socket are aligned in a V-shape, supporting exceptionally smooth and natural pole insertion when handling them with your right hand.

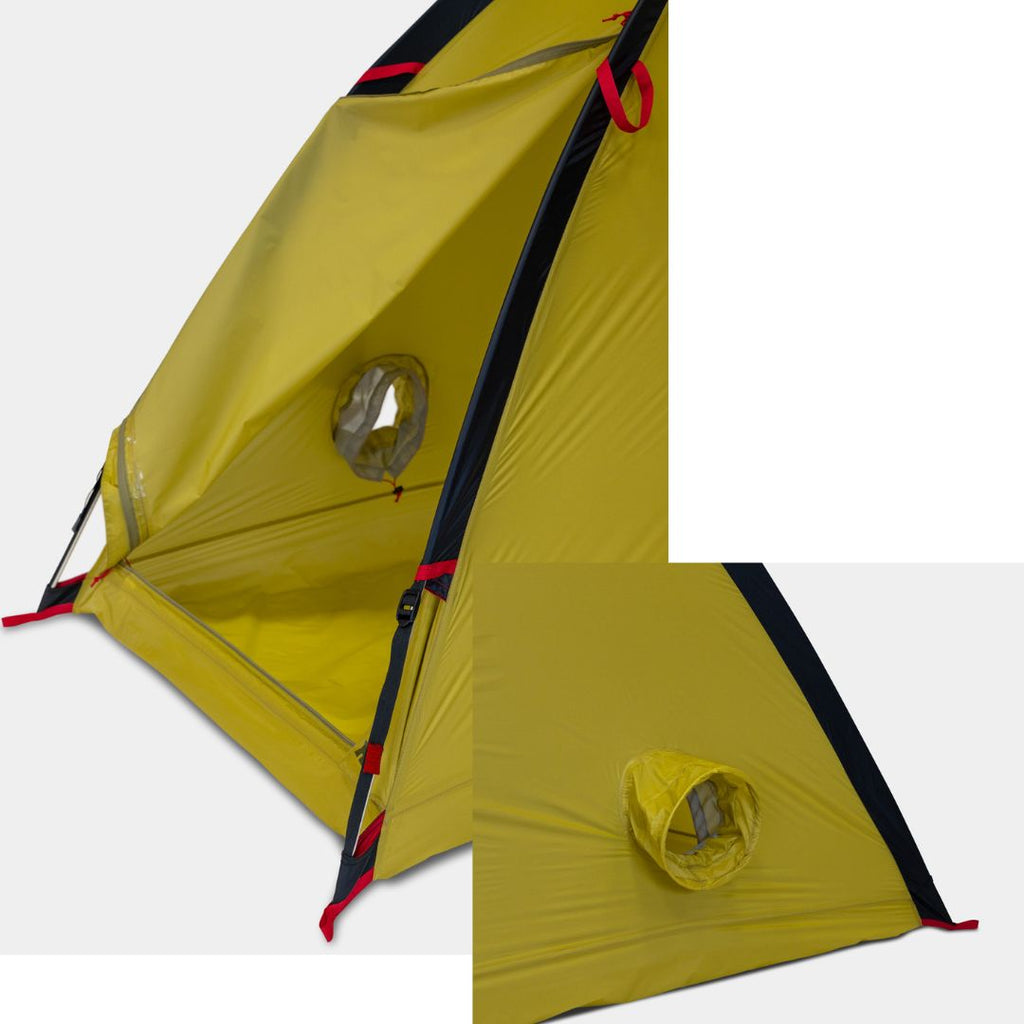

• Collapse-Resistant High-Performance Vents: Equipped with a flexible yet firm ring core to prevent collapsing. Positioned at the upper side panel and the opposite lower side, they deliver highly efficient cross-ventilation.

• Compatible with Mosquito Nets (Sold Separately): Optional mosquito nets can be attached to the vents as needed for added insect protection.

• Short-Side Entrance Reduces Feeling of Pressure: Unlike the standard model, the CROSSOVER DOME f features its entrance on the short side. This layout creates a sense of depth, minimizing the cramped feeling when crawling into the compact shelter.

• Double Sliders for Easy Ventilation: The vertical entrance zipper features a double-slider design, allowing you to easily open just the top portion for quick and hassle-free ventilation.

■ Attention

The CROSSOVER DOME is designed for a completely different purpose than standard tents. As a dome-shaped shelter (tselt) that prioritizes ultra-lightweight and compact design above all else, it offers only minimal structural strength and weather protection. Please ensure you fully understand the risks involved in using such an extremely lightweight piece of gear.

• NO OPEN FLAMES: The use of firearms, stoves, or open flames inside the shelter is strictly prohibited.

• VENTILATION: Always keep the vents open to ensure proper ventilation during a bivouac.
